TX-□G TYPE STUD TERMINAL BLOCK
FEATURES

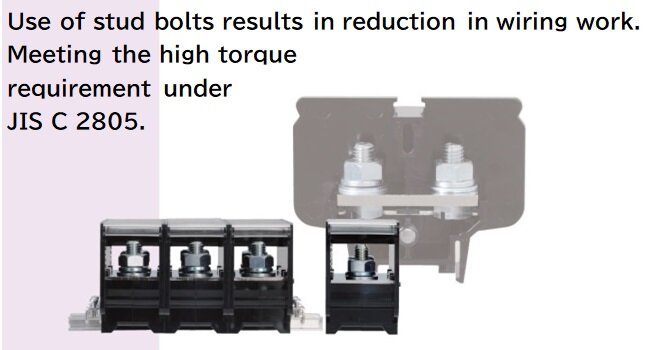

Stud bolts are used for wiring.
Use of stud blots can save labor of wiring work, and also has effect in prevention of loss of a bolt and connection failure such as pinching.
Enables tightening at high torque.
The TX-G type is a terminal block for industrial use, and also enables tightening at high torque that meets the requirement of JIS C 2805 (crimp terminal for copper wire).
Applicable to a current value of breaker size.
The TX-G type enables space-saving through appropriate size selection.
Enables quick rail-mounting.
Each terminal unit can be mounted to a DIN rail or removed from a DIN rail singly through stopper operation.
* TX-60SG does not support quick mounting and removal.
Applicable to various mounting methods.
The mounting methods can be freely selected (DIN-rail or shaft mounting, in addition to our dedicated rail), enabling flexible mounting according to application.
* TX-325G is intended for the shaft mounting method.
Use of high-performance resin materials.
High-performance modified PPE (UL94 V-0 class) is used for the resin material of the unit, which provides excellent insulation and flame-retardant properties.
Compatible with RoHS Directive
Uses parts meeting hazardous substance control requirements.
Applicable standard：NECA C 2811(2012) Terminal blocks for industrial and similar use
JIS C 8201-7-1(2016) Low-voltage switchgear and controlgear
IES 60947-7-1(2009)
| Specification | Rated | performance | Standard Terms of Use | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated insulation voltage (Ui) | Rated current-carrying capacity |
Rated connecting capacity |
Screw size | Recommended tightening torque |
Power-Frequency withstand voltage |
Rated impulse withstand voltage |
Ambient operating temperature |
Storing temperature |
Altitude | |||
| Pollution degree 2 | Pollution degree 3 | General specifications |
IEC | |||||||||
| TX-60SG | 800V | 600V | 200A | 175A | 14～60mm2 | M8 | 8.9～10.8N | AC3,000V/1min. | 8kV | -25～50℃ | -40～85℃ | 2,000m or less |
| TX-100G | 1,000V | 600V | 250A | 240A | 60～100mm2 | M10 | 18.0～23.0N | AC5,000V/min. | 8kV | -25～50℃ | -40～85℃ | 2,000m or less |
| TX-150G | 1,000V | 600V | 310A | 100～150mm2 | M10 | 18.0～23.0N | AC5,000V/1min. | 8kV | -25～50℃ | -40～85℃ | 2,000m or less | |
| TX-200G | 1,000V | 600V | 400A | 370A | 150～200mm2 | M12 | 31.5～39.5N | AC5,000V/1min. | 8kV | -25～50℃ | -40～85℃ | 2,000m or less |
| TX-325G | 1,000V | 600V | 660A | - | 150～325mm2 | M16 | 78.5～98.0N | AC5,000V/1min. | 12kV | -25～50℃ | -40～85℃ | 2,000m or less |
| product | document | data type | volume of data | date of update | download |
|---|---|---|---|---|---|
| TX-□G TYPE STUD TERMINAL BLOCK | Catalog | 958.6KB | - | download |
