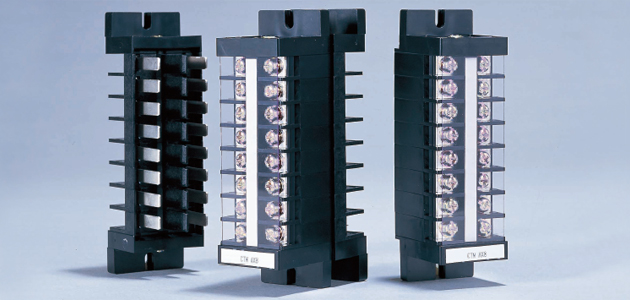

CTM TYPE RECTANGULAR CONNECTOR
FEATURES
- This connector can be used with an input transformer or current protection relay for CT circuit connection use.
- The contacts have highly reliable contacting performance; it is compactly designed and yet enable large current-carrying of 5 A.
The contact pressure is high, while the connection / disconnection load is small. - The plug and socket can only be inserted in a single direction to prevent any wrong insertion by the plug stopper.
Rated insulation voltage (Ui) | Rated current-carrying capacity (Ith) | Max. wire size | Screw size | Withstand voltage | Lightning impulse | Short-time current | Contact resistance | Shock resistance | Operating temperature | Storing temperature | Relative humidity | Altitude | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTM | 250V | 5A | 2mm2 | M3.5×7 | (Live part to assembly mounting panel) 2,000V AC/1 min./ (Between live parts) 2,000V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for eac h pole (1.2/50μs) | 200A 1 sec. | Between poles 10mΩ max. (initial value) |
50G or more/each axial direction | -20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
CTMH | 250V | 5A | 2mm2 | M3.5×7 | (Live part to assembly mounting panel) 2,000V AC/1 min./ (Between live parts) 2,000V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for eac h pole (1.2/50μs) | 200A 1 sec. | Between poles 10mΩ max. (initial value) |
50G or more/each axial direction | -20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
CTMX | 250V | 5A | 2mm2 | M3.5×7 | (Live part to assembly mounting panel) 2,000V AC/1 min./ (Between live parts) 2,000V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for eac h pole (1.2/50μs) | 200A 1 sec. | Between poles 10mΩ max. (initial value) |
50G or more/each axial direction | -20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
product | document | data type | volume of data | date of update | download |
---|---|---|---|---|---|
CTM TYPE RECTANGULAR CONNECTOR | Catalog | 1082.0KB | - | download |
