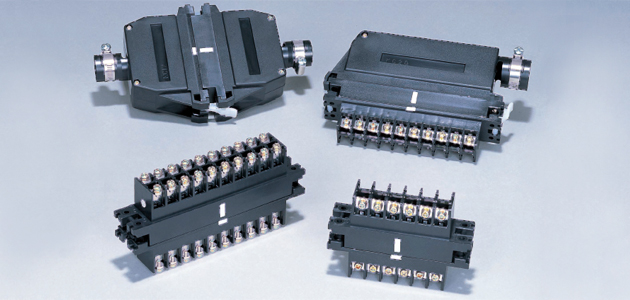

KC TYPE RECTANGULAR CONNECTOR
FEATURES
Highly reliable contact (contactor)
The fork-shaped contact has a cleaning groove in the contacting part, which wipe off dust and other foreign material attached to the contacting part so that good contact is always maintained. The contacting part is fork-shaped having 2 contacting points per prong. Thus, 1 contact provides 6 contacting points and this structure assures high reliability.
Safety
All the live parts are accommodated in the housing made of rigid engineering plastic.
A beautiful cover that also serves as a grip is provided to shield the terminal side.
Complete structure to prevent wrong insertion
The housing is designed to be inserted in a given direction. Since the contacts are completely protected by the housing, an inserting attempt in wrong direction does not create a contact between different circuits.
Large current capacity
The current-carrying capacity is 20 A when all the circuits are always ON or 25 A when a half of the circuits are used.
Quick locking mechanism
The quick locking mechanism (with the KC hook) of the housing is easy to use.
| Rated insulation voltage (Ui) | Rated current-carrying capacity (Ith) | Applicable wire size | Withstand voltage | Lightning impulse | Short-time current | Contact resistance | Shock resistance | Operating temperature | Storing temperature | Relative humidity | Altitude | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KC-12 | 600V | 20A (25A when 1/2 circuit is closed) | 2mm2 to 5.5mm2 | (Live part to assembly mounting panel) 2,500V AC / 1 min. / (Between live parts) 2,500V AC / 1 min. | (Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for eac h pole (1.2/50μs) | 200A 2 sec. | Between poles 10mΩ max. (initial value) |
30G or more/ each axial direction |
-20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
| KC-20 | 600V | 20A (25A when 1/2 circuit is closed) | 2mm2 to 5.5mm (18 wires maximum) |
(Live part to assembly mounting panel) 2,500V AC / 1 min. / (Between live parts) 2,500V AC / 1 min. | (Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for eac h pole (1.2/50μs) | 200A 2 sec. | Between poles 10mΩ max. (initial value) |
30G or more/ each axial direction |
-20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
| product | document | data type | volume of data | date of update | download |
|---|---|---|---|---|---|
| KC TYPE RECTANGULAR CONNECTOR | Catalog | 1385.7KB | - | download |
