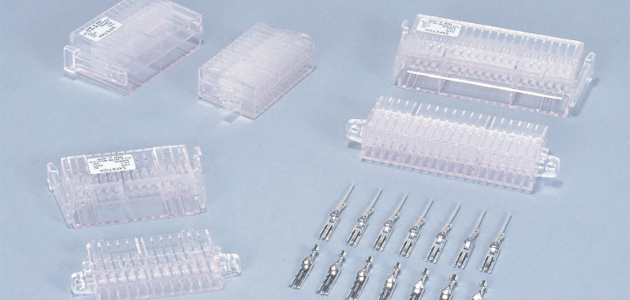

SC TYPE RECTANGULAR CONNECTOR
FEATURES
High contact reliability and high conductive material
The contact is made of zinc-free copper alloy with high conductivity. It is also weatherproof and therefore free from season cracks.
The surface is tin-plated with whiskerproof treatment.
The contact part is shaped like a three-prong fork so that contact pressure is mutually given to the opposite contact part.
High reliability can be achieved even if this connector is used for very frequent connection / disconnections or a low-voltage circuit.
Transparent housing
The housing is made of transparent polycarbonate resin, which allows easy checking of contact status.
Tight housing connection lock
12, 24, and 36 pole housings are available. The circuit can be freely designed by inserting necessary contacts.
Prevention of wrong insertion
The housing is provided with a filter that prevents wrong insertion. No insertion is possible in the opposite direction.
Of different pole types cannot contact each other. For example, 12 pole type cannot conect to 24 and 36 pole type.
| Rated insulation voltage (Ui) | Rated current-carrying capacity (Ith) | Applicable wire size | Withstand voltage | Lightning impulse | Short-time current | Contact resistance | Shock resistance | Operating temperature | Storing temperature | Relative humidity | Altitude | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-PS12C | 250V | 10A (15A when a single pole is used) | 0.75mm2 to 2.0mm2 | (Live part to assembly mounting panel) 2,500V AC/1 min./ (Between live parts) 2,500V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for each pole (1.2/50μs) |
200A 2 sec. | Between poles 10mΩ max. (initial value) | 50G or more/ each axial direction |
-20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
| SC-PS24C | 250V | 10A (15A when a single pole is used) | 0.75mm2 to 2.0mm2 | (Live part to assembly mounting panel) 2,500V AC/1 min./ (Between live parts) 2,500V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for each pole (1.2/50μs) |
200A 2 sec. | Between poles 10mΩ max. (initial value) | 50G or more/ each axial direction |
-20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
| SC-PS36C | 250V | 10A (15A when a single pole is used) | 0.75mm2 to 2.0mm2 | (Live part to assembly mounting panel) 2,500V AC/1 min./ (Between live parts) 2,500V AC/1 min. |
(Between live parts and mounting panel) ±7kV/3 times for each pole (1.2/50μs) (Between live parts) ±4.5kV/3 times for each pole (1.2/50μs) |
200A 2 sec. | Between poles 10mΩ max. (initial value) | 50G or more/ each axial direction |
-20 to 50℃ | -40 to 85℃ | 85% max. | 2,000m max. |
