TCN TYPE CONNECTOR TERMINAL BLOCK
FEATURES

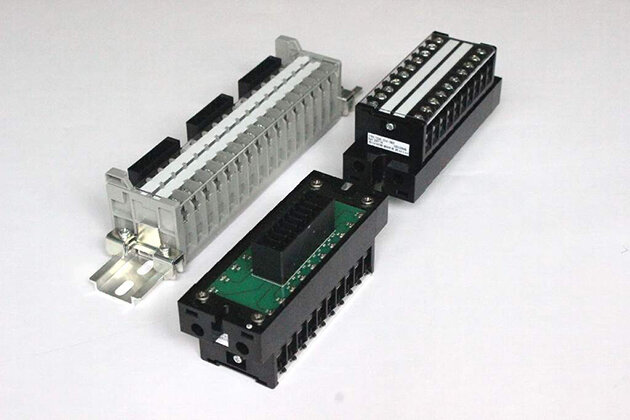

- Terminal block with screw terminals on the outside wire side and connectors on the inside panel wiring side.The compact size was achieved without changing the user's wiring work.
- Two connector positions are lined up: backside connection (Penetrate type: A type) and surface connection (Parallel type: B type). Can be selected according to the panel structure, contributing to space saving in the panel.
- TCNQ type has a structure that prevents wires from falling out, preventing accidents due to pinching of crimp terminals. ※We will consider other productions upon request. Please contact our sales office for details.
| TCNX-3.5 | |
|---|---|
| Rated insulation voltage (Ui) | 250V |
| Rated impulse withstand voltage | 4kV |
| Rated current-carrying capacity (Ith) | 1A |
| Rated cross-section | 3.5mm2 |
| Rated connecting capacity | 1.25 to 5.5mm2 |
| Crimp terminal | 2mm2: R type R2-4, 5.5mm2: R type 5.5-S4 |
| No. of poles | 44 |
| Screw size | M4×8.5 |
| Pollution degree | 3 |
| Connector | Dynamic D-3100S |
| Insulation resistance | 1,000MΩ or more |
| Power-Frequency withstand voltage | 2,000V AC / 1 min. 1,500V AC / 1 min. |
| Rated impulse withstand voltage | ±4000V / 3 times for each pole |
| TCNQ-5.5 | |
|---|---|
| Rated insulation voltage (Ui) | 600V AC / DC |
| Rated current-carrying capacity (Ith) | 5A |
| Short-time current | 20A / 0.5sec |
| Rated cross-section | 5.5mm2 |
| Screw size | M4×8.5 |
| Ambient operating temperature | －25 to 50℃ |
| Storing temperature | －40 to 85℃ |
| Relative humidity | 45 to 85% |
| Pollution degree | 1 |
| product | document | data type | volume of data | date of update | download |
|---|---|---|---|---|---|
| TCN TYPE CONNECTOR TERMINAL BLOCK | Catalog | 856.0KB | - | download |
