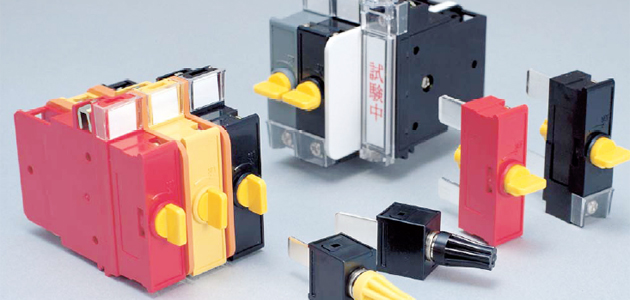

V TYPE TEST TERMINAL
FEATURES
- The test plug and lock plug connecting parts provide a twin-contact structure that enables secure connections.
- With the up-screw type terminals, the V type can prevent terminal screws from dropping, resulting in a reduced number of wiring steps. The finger protection structure protects the live parts, ensuring improved safety.
- The V type terminals provide color variations depending on the application. A variety of protective caps and application labels are also available. These parts can be combined according to user requests.
- The one-touch lock mechanism securely locks each terminal. You can lock and unlock a terminal by pushing and turning the knob (two actions), to prevent erroneous operation.
| VTT・VTL | ||
|---|---|---|
| Rated insulation voltage (Ui) | 250V | |
| Rated current-carrying capacity (Ith) | 20A | |
| Max. wire size | 5.5mm2 | |
| Screw size | Ｍ4×9 (Up-screw type) | |
| Withstand voltage | Between live parts and mounting panel Between live parts |
2,000V AC for one minute |
| Lightning impulse | Between live parts and mounting panel Between live parts |
±7kV/3 times for each pole (1.2/50μs) |
| Insulation resistance | Between live parts and mounting panel Between live parts |
1,000MΩ or more (by insulation resistance meter, 1,000V DC) |
| Overload capability | 800 A for 2 sec. (Twice at one-min. intervals) | |
| Contact resistance (Initial value) | 10mΩ max. | |
| Insertion / removal durability | 3,000 operations or more | |
| Operating temperature | -20 to 50℃ | |
| Storing temperature | -40 to 85℃ | |
| Altitude | 2,000m max. | |
