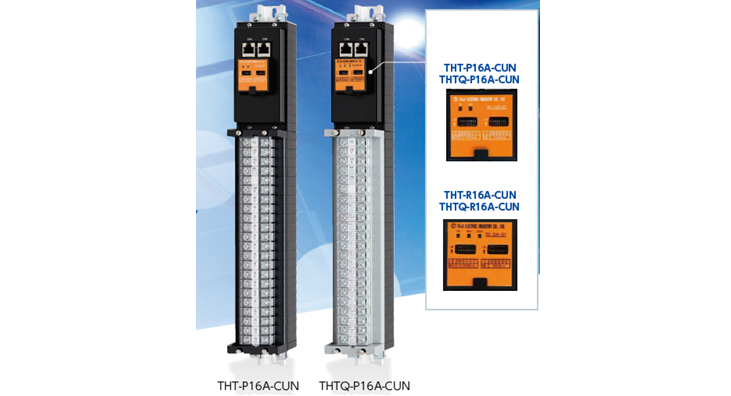

THT TYPE THTQ TYPE CUnet TRANSMISSION TERMINAL BLOCK
FEATURES
CUnet Communication
By adopting CUnet communication, a master device (such as a PC or PLC) is not required,
allowing installation by simply replacing the terminal block.
*Connection to a master device is also supported.
Noise Immunity
Complies with the noise test requirements of Electric Power Standard B-402 (FY2016 Edition).
Provides excellent reliability in terms of noise immunity, voltage fluctuation tolerance, and insulation performance.
Power Supply Specification
Supports DC100V/110V control input power.
No separate power supply or voltage conversion is required.
Screw Terminal
Based on a standard screw terminal block, the unit incorporates Di devices and electromechanical relays within the terminal block,
and also features a built-in communication module, functioning as an input/output interface unit.
Replacement & Fault Detection
The unit is designed with a replaceable communication module.
It is also equipped with a fault detection function, with status indication via LED and output through dry contacts.
| Item | Specification | |||
|---|---|---|---|---|
| Standard Operating Conditions | Ambient Operating Temperature | -20 to +60°C | ||
| Storage Temperature | -40 to +80°C | |||
| Relative Humidity | -30 to 80% No condensation or icing |
|||
| Item | Specification | |||
|---|---|---|---|---|
| Ratings | ||||
| Rated Voltage | DC100/110V | |||
| Allowable Voltage Range | DC80–143V | |||
| DI Input Specifications | Input Voltage Range | DC80–143V | ||
| Input Current (Ta = 25°C) |
1.7 mA ±20% (DC100/110V) 1.75 mA ±20% (DC125V) |
|||
| Minimum Operating Voltage |
DC60–80V (No operation below DC60V, full operation at DC80V or higher) |
|||
| DO Output Specifications | Relay Used | G6DN-1A | ||
| Rated Load |
AC250V 5A, DC30V 5A (Resistive Load) AC250V 2A, DC30V 2A (Inductive Load, cosφ = 0.4, L/R = 7 ms) |
|||
| Rated Carrying Current | 5A | |||
| Operate Time | 10 μs max. *Excerpt from relay specifications | |||
| Release Time | 5 ms max. *Excerpt from relay specifications | |||
| Fault Output Specifications | Relay Used | G6DN-1A | ||
| Rated Load |
AC250V 5A, DC30V 5A (Resistive Load) AC250V 2A, DC30V 2A (Inductive Load, cosφ = 0.4, L/R = 7 ms) |
|||
| Rated Carrying Current | 5A | |||
| Operate Time | 10 μs max. *Excerpt from relay specifications | |||
| Release Time | 5 ms max. *Excerpt from relay specifications | |||
| Communication Specifications |
Communication Method | CUnet (Multi-master Broadcast System) | ||
| Connection Type | Multi-drop (RS-485) | |||
| Communication Cable | Category 5 or higher shielded cable | |||
| Maximum Number of Nodes | 64 Units | |||
| Communication Speed | 3 Mbps, 6 Mbps, 12 Mbps | |||
| Communication Distance |
12 Mbps: 100 m 6 Mbps: 200 m 3 Mbps: 300 m |
|||
| Performance | Insulation Resistance | Circuit-to-ground: 10 MΩ min. / Between circuits: 5 MΩ min. | ||
| Power Frequency Withstand Voltage | Circuit-to-ground: AC2000V / 1 min / Between circuits: AC2000V / 1 min | |||
| Lightning Impulse Withstand Voltage (1.2 × 50 μs) | Circuit-to-ground: 4.5 kV / 3 times / Between circuits: 3 kV / 3 times | |||
| Vibration | Frequency: 16.7 Hz, Double amplitude: 0.4 mm, Test duration: 600 s | |||
| Shock | 300 m/s² in each direction, 3 times each | |||
