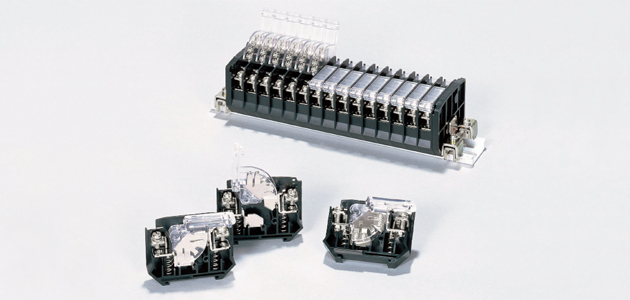

TDH TYPE DISCONNECTING TERMINAL BLOCK

TDH TYPE DISCONNECTING TERMINAL BLOCK

FEATURES

  • The circuit can be disconnected by the lever operation.
  • With up-screw terminals, wires up to 14 mm2 can be connected.
  • The terminal block can be mounted on DIN rails.
  • 2-pole batch disconnection is also available.
  • The TDH-□T type is equipped with special terminals for easy voltage checks.
  Rated insulation voltage (Ui) Rated current-carrying capacity (Ith) Max. wire size Screw size Withstand voltage Lightning impulse Operating temperature Storing temperature Altitude
TDH-5.5 600V 25A 5.5mm2 M4×8.5 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -20 to 50℃ -40 to 75℃ 2,000m max.
TDH-14 600V 40A 14mm2 M5×11 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -20 to 50℃ -40 to 75℃ 2,000m max.
TDH-5.5T 600V 25A 5.5mm2 M4×8.5 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -20 to 50℃ -40 to 75℃ 2,000m max.
TDH-14T 600V 40A 14mm2 M5×11 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -20 to 50℃ -40 to 75℃ 2,000m max.
product document data type volume of data date of update download
TDH TYPE DISCONNECTING TERMINAL BLOCK catalog PDF 852.7KB - download
DISCONNECTING TERMINAL BLOCK ACCESSORIES catalog PDF 1148.6KB - download
