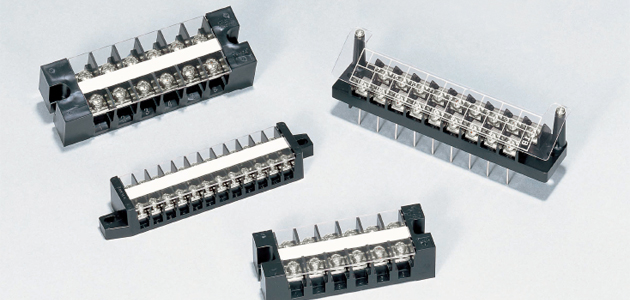

TM TYPE, T□TYPE BLOCK TYPE TERMINAL BLOCK

TM TYPE, T□TYPE BLOCK TYPE TERMINAL BLOCK

FEATURES

  • The block type terminal block is easy to use for operation circuits and signal circuits with a fixed number of wires.
    Screw terminals and wrapping terminals are available.
  • The terminal block is robust and ensures safe handling.
    High-performance engineering plastic is used for the insulation material, ensuring excellent electrical and mechanical durability without breakdown.
  Rated insulation voltage (Ui) Rated current-carrying capacity (Ith) Max. wire size Screw size Withstand voltage 電インパルス Operating temperature Storing temperature Altitude
TM-20A 600V 25A 5.5mm2 M4×10 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -25 to 50℃ -40 to 75℃ 2,000m max.
TM-40A 600V 40A 8mm2 M5×10 1 minute at 2,500V AC ±7.2kV/3 times for each pole (1.2/50μs) -25 to 50℃ -40 to 75℃ 2,000m max.
T-15 250V 15A 2mm2 M3.5×8 1 minute at 2,000V AC ±4.5kV/各極3回(1.2/50μs) -25 to 50℃ -40 to 75℃ 2,000m max.
TL-12 250V 10A 5.5mm2 M4×9 1 minute at 2,500V AC ±6kV/3 times for each pole (1.2/50μs) -25 to 50℃ -40 to 75℃ 2,000m max.
TY-18 250V 3A 5.5mm2 M4×9 1 minute at 2,500V AC ±6kV/3 times for each pole (1.2/50μs) -25 to 50℃ -40 to 75℃ 2,000m max.
product document data type volume of data date of update download
TM TYPE, T□TYPE BLOCK TYPE TERMINAL BLOCK catalog PDF 1905.1KB - download
