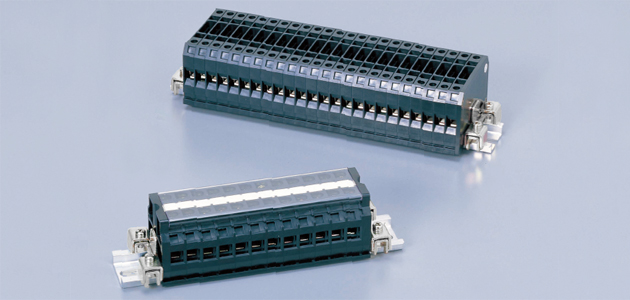

TN TYPE CLAMPING TYPE TERMINAL BLOCK
FEATURES
- An electric wire is inserted between the conductor and the screw (plug) and then clamped with the pressing force of the screw. The short height enables compact assembly.
- The TN-TT1 has a sliding switch for disconnection and a socket for circuit check.
- The G32 type rail (commercially available) may be attached (this rail is not available from us).
| Rated insulation voltage (Ui) | Rated current-carrying capacity (Ith) | Max. wire size | Screw size | Withstand voltage | Lightning impulse | Operating temperature | Storing temperature | Altitude | |
|---|---|---|---|---|---|---|---|---|---|
| TG-3.5 | 250V | 10A | 2mm2 | M3.5×7.5 | 1 minute at 2,000V AC | ±4kV/3 times for each pole (1.2/50μs) | -20 to 50℃ | -40 to 85℃ | 2,000m max. |
| product | document | data type | volume of data | date of update | download |
|---|---|---|---|---|---|
| TN TYPE CLAMPING TYPE TERMINAL BLOCK | catalog | 1080.1KB | - | download |
