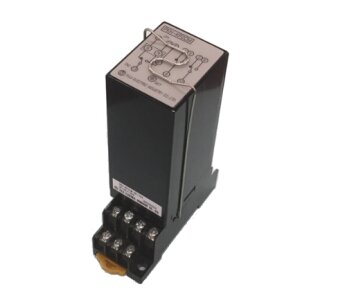

PKH TYPE PLUG-IN RELAY
FEATURES
Realization of miniaturization
Compact design contributes to space saving in the equipment.
Reduction of mounting man-hours
Plug-in type eliminates the need to change wiring when replacing.
Conformed to B-402 standards
PKH has high noise withstand, voltage fluctuation and insulation performance.
Equipped with function to prevent relay keep being charged
PKH has function to prevent relay keep being charged. Includes LED to indicate operating status.
| Type | PKH-KP1CM-DC110V | PKH-KP2CM-DC110V | |
|---|---|---|---|
| Control power voltage | DC100/110V | ||
| Fluctuation range of control power voltage | 80 to 143V DC (DC143V is temporarily allowed) | ||
|
Operation performance |
SET voltage | 80% or less of rated voltage | |
| RESET voltage | |||
| Set time | 5ms (DCF) (SET・RESET) | ||
| Min. input time | 10ms | ||
| Internal relay | G6AK-274P-ST-US DC48V (Manufactured by OMRON Co., Ltd) | ||
| Output contact | Number of contacts | 1c | 2c |
|
Max. contact current -carrying capacity |
1A DC | ||
| Making and breaking capacity | 30V DC / 1A (Resistive load), 110V DC / 0.2A (Inductive load) | ||
| Insulated resistance |
5MΩ (500V DC mega) Between coil and output contact, Between Output contact (only 2C contact specification), Between contact circuit terminals (inter-polar) |
||
| Power-frequency withstand voltage |
2,000V AC / 1min. Between all circuit and ground (Includes output contact in electrical circuit) Between output contact (only 2C contact specification) |
||
|
1,000V AC / 1min. Between coil and output contact, Between contact circuit terminals (inter-polar) |
|||
| Impulse withstand voltage (Uimp) |
±4.5kV (1.2×50μs) each 3 time Between all circuit and ground (Includes output contact in electrical circuit) |
||
| Ambient operating temperature | 0 to 40℃ (no freeze / no condensation) | ||
| Ambient operating humidity | 30 to 80% | ||
| Operational indication color | Red | ||
| Holder (accessory) | PKT holder 14 (Manufactured by Fuji electric industry Co., Ltd) | ||
| Socket (optional) | PYF14T / PYFZ-14 (Manufactured by OMRON Co., Ltd) | ||
