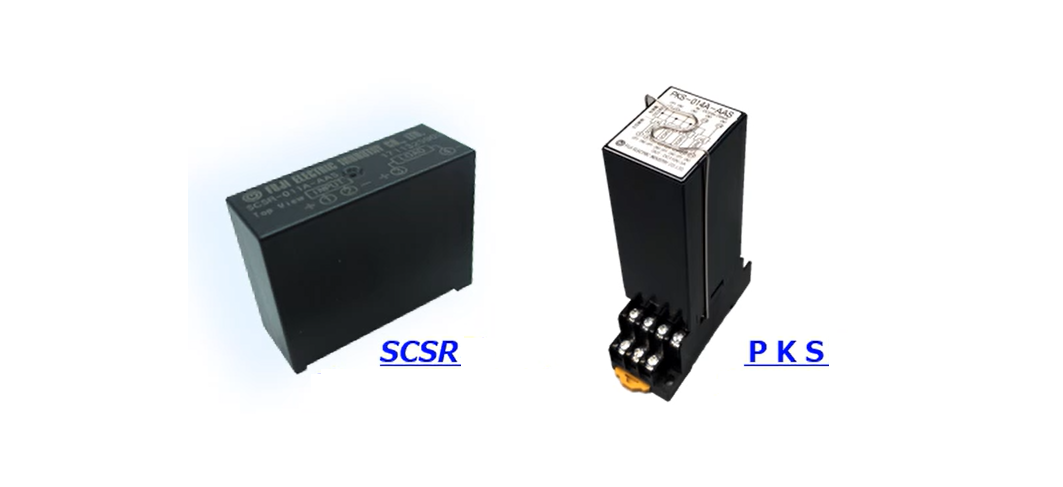

SCSR TYPE PKS TYPE SemiCon Switch
FEATURES
DC Switching
Reliable switching is achieved using semiconductor devices. It can be used easily as a Solid State Relay (SSR).
Breaking Capacity
SCSR Series: DC 143 V, 3 A
High-Speed Response
Operating and release times are significantly faster than those of mechanical relays. In addition to resistive loads, it can also be used for high-speed switching of inductive loads such as DC solenoids when used together with a protection device.
Long Service Life
Since there is no contact wear caused by arcing, the relay offers excellent switching durability. It helps reduce maintenance and replacement work in applications requiring frequent switching, such as brake circuits.
Remote Control
The control signal uses DC 24 V, which can be driven by PLC signals and other control systems, allowing easy remote operation.
Silent Operation
Since semiconductor devices are used for the main switching circuit, the relay operates silently, making it ideal for nighttime operation and noise-sensitive environments.
High Reliability
The contactless design eliminates problems such as contact oxidation and contamination, ensuring high reliability.
Overcurrent Protection
If the rated current is exceeded due to an abnormal load or power supply condition, the main circuit is automatically shut down to protect the equipment from damage. (STH Series only)
Electric Power Standard (B-402)
Designed for power relay applications, it provides excellent reliability in terms of noise immunity, voltage fluctuation tolerance, insulation performance, and other electrical characteristics.
| Item | Specification | SCSR Series | |
|---|---|---|---|
| Main Circuit | Maximum Load Voltage | DC143V | |
| Maximum Allowable Load Current | DC20A (0.5 s max.) | ||
| Leakage Current (Open State) | DC10 μA max. | ||
| Control Circuit | Rated Voltage | DC24V | |
| Rated Current | DC20mA | ||
| Allowable Voltage Variation | ±10% | ||
| Operate Voltage | 19.2V max. | ||
| Release Voltage | 2.4V min. | ||
| Power Frequency Withstand Voltage (Circuit to Ground) |
AC2,200V / 1 min | ||
| Operate Time | 3 ms max. | ||
| Release Time | 3 ms max. | ||
| ON Resistance | 60 mΩ max. | ||
| Breaking Capacity |
DC143V / 3A (L/R ≤ 5 ms) DC143V / 0.5A (L/R = 100 ms) |
||
| Item | Specification | PKS Series | |
| Main Circuit | Maximum Load Voltage | DC143V | |
| Maximum Allowable Load Current | DC3A (L/R ≤ 5 ms) | ||
| Leakage Current (Open State) | DC10 μA max. | ||
| Control Circuit | Rated Voltage | DC24V | |
| Rated Current (Per Circuit) | DC20mA max. | ||
| Allowable Voltage Variation | ±10% | ||
| Operate Voltage | 19.2V min. | ||
| Release Voltage | 2.4V min. | ||
| Operating Temperature | -20 to 60°C | ||
| Storage Temperature | -40 to 80°C | ||
| Relative Humidity | Daily average 85% (45°C) | ||
| Altitude | 2,000 m max. | ||
| Pollution Degree | 3 | ||
For high-frequency switching applications, the duty cycle should not exceed 50%.
