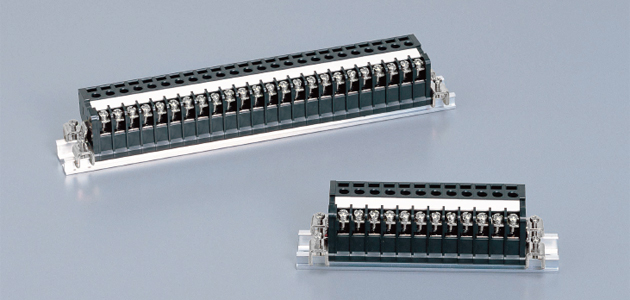

TG TYPE CLAMPING TYPE TERMINAL BLOCK
FEATURES
- The combination of one screw terminal and the other cramp terminal makes wiring work easy.
- The up-screw type terminal block has the same smooth screw mechanism as well as TX type.
- Cramp type wiring which is connected from upper side reduces space for wiring.
Wires can be disconnected quickly.
| Rated insulation voltage (Ui) | Rated current-carrying capacity (Ith) | Max. wire size | Screw size | Withstand voltage | Lightning impulse | Operating temperature | Storing temperature | Altitude | |
|---|---|---|---|---|---|---|---|---|---|
| TG-3.5 | 250V | 10A | 2mm2 | M3.5×7.5 | 1 minute at 2,000V AC | ±4kV/3 times for each pole (1.2/50μs) | -20 to 50℃ | -40 to 85℃ | 2,000m max. |
| product | document | data type | volume of data | date of update | download |
|---|---|---|---|---|---|
| TG TYPE CLAMPING TYPE TERMINAL BLOCK | Catalog | 356.0KB | - | download |
